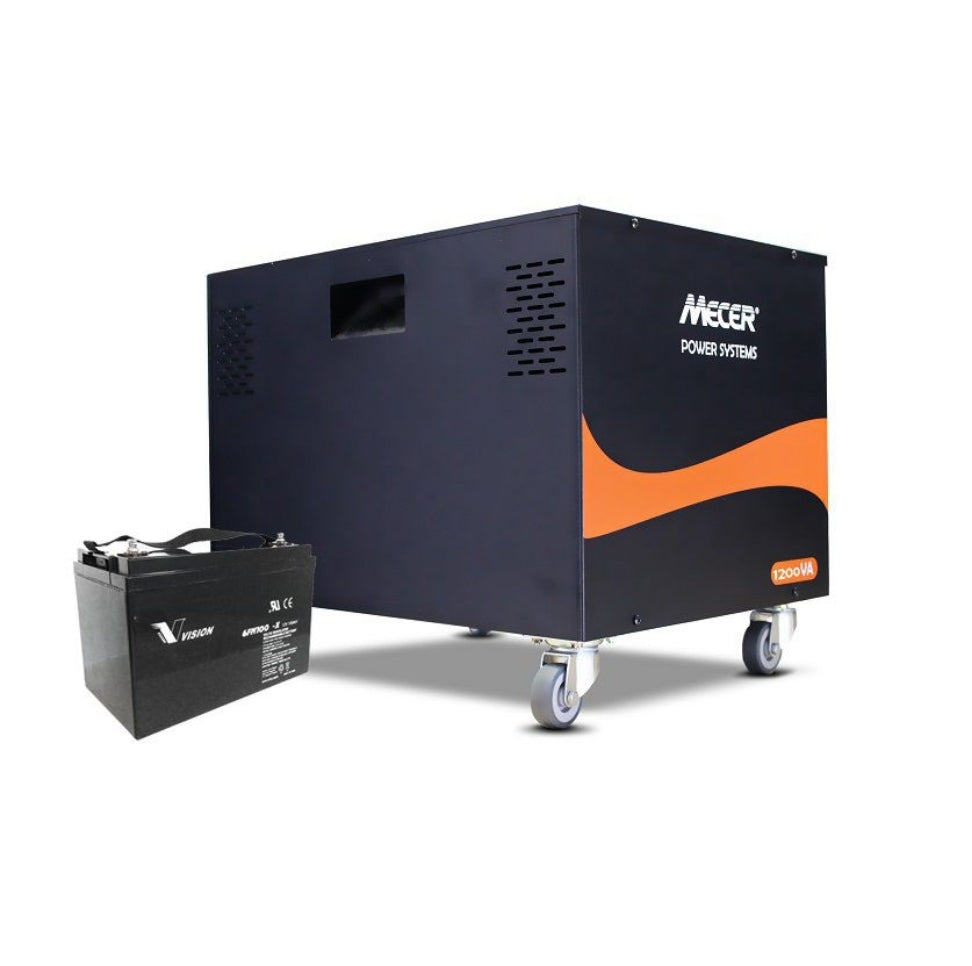

Features Supports 1x 12 V 100Ah battery (Included) Transportable 1200VA/720W DC-AC Inverter Socket for Solar Power Simulated sine wave inverter Wide input voltage range 10 A standard AC charging current LCD display for comprehensive information Overload, short circuit and reverse polarity protection
Input
Voltage 230 VAC
Acceptable Voltage Range 90-280 VAC
Frequency 50 Hz/60 Hz (Auto sensing) OUTPUT
AC Voltage Regulation (Batt. Mode) ± 10%
Efficiency (Peak) 82%
Transfer Time 20 ms typical
Waveform (Batt. Mode) Simulated sine wave
BATTERY
Battery Type and Numbers 12 V 100Ah x 1
The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special oneway valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position.
PROTECTION Full Protection Overload, short circuit and polarity reserve protection
PHYSICAL
Dimension 370mm (W)x310(D) x400(H)
OPERATING ENVIRONMENT
Humidity 0 to 90% Relative Humidity (Non-condensing)
